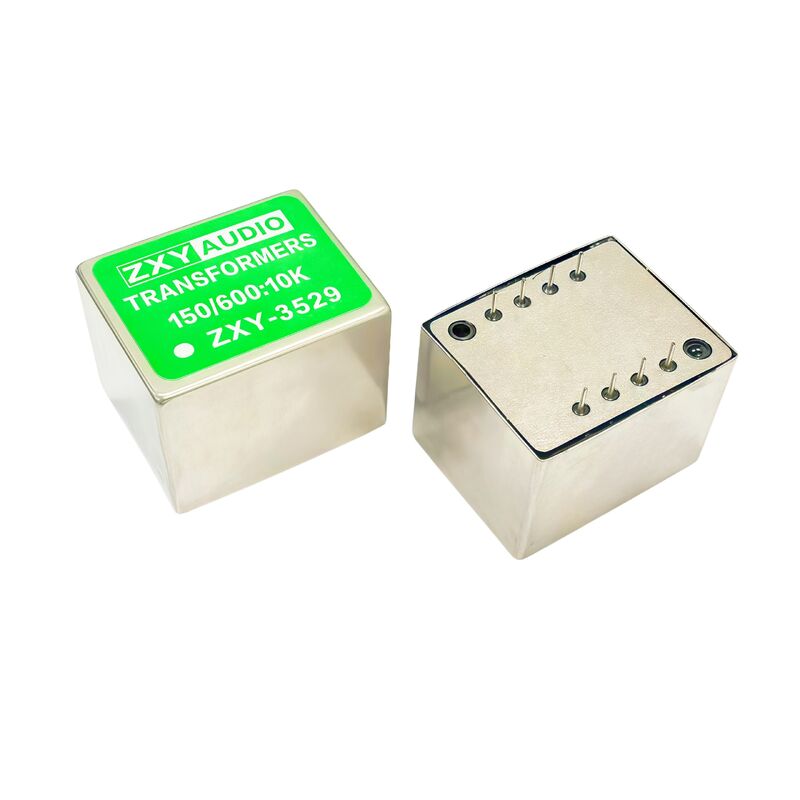

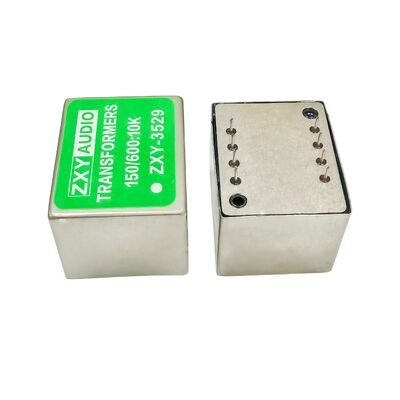

ZXY3529 Permalloy Audio Transformer 150/600:10K Impedance Matching Step-Up
1.Product Description
The ZXY3529 is a high-performance Permalloy core audio transformer designed by ZhiXiangYuan Electronics. Engineered specifically for impedance matching and step-up applications, this versatile component supports primary impedances of 150Ω or 600Ω and steps up to a 10KΩ secondary load.
Why Choose the ZXY3529?
High-Performance Core: Utilizing high magnetic permeability Permalloy material, this transformer ensures ultra-low distortion, minimal signal loss, and excellent low-frequency response, preserving the warmth and clarity of your audio.
Effective Noise Isolation: It provides galvanic isolation to break pesky ground loops, effectively eliminating 50/60Hz system hum and RF interference that plagues professional audio chains.
Professional Voltage Step-Up: Whether you need to match a legacy 150/600Ω microphone or line output to a modern 10K input stage, the ZXY3529 delivers a clean voltage gain without the need for active electronics.
Applications:
Broadcasting & Recording Studios: Ideal for interfacing vintage ribbon microphones (low impedance) with modern preamps.
Hi-Fi Audio Systems: Perfect for step-up conversion in phono preamps or passive volume controls.
Pro Audio Gear: Used in DI boxes, re-amplifiers, or to balance unbalanced signals across long cable runs.
2.Performance Characteristics
| Parameter | Condition / Value |
| Primary Impedance | 150Ω / 600Ω |
| Secondary Impedance | 10KΩ |
| Core Material | Permalloy (High Magnetic Permeability) |
| Frequency Response | 20Hz – 20kHz ±0.5dB |
| Insertion Loss | ≤ 0.5dB |
| Distortion (THD+N) | < 0.05% @ 1kHz, +4dBu |
| Maximum Level | +15dBu @ 50Hz |
| Isolation Voltage | 500Vrms |
| Shielding | Mu-metal / Electrostatic shield optional |
| Operating Temperature | -20°C to +85°C |
| Termination | PCB pins / Lead wires |
| Applications | Mic input matching, line isolation, step-up for ribbon mics, DI boxes, Hi-Fi phono stages |
|
|
