| ブランド名: | ZXY |
| モデル番号: | ZXY-G50 |
| MOQ: | 交渉可能 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| Feature Category | Specification / Description | Benefit / Impact |
|---|---|---|
| Physical & Mechanical |

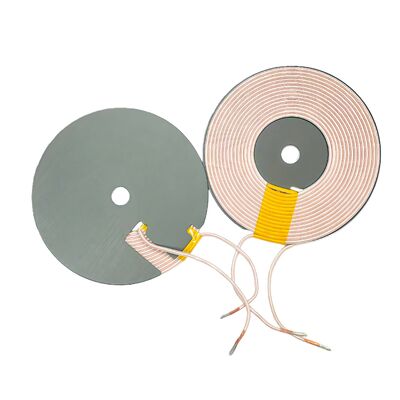

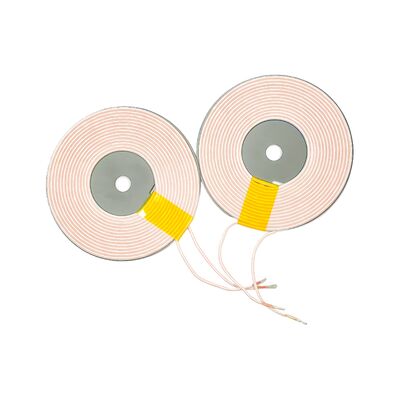

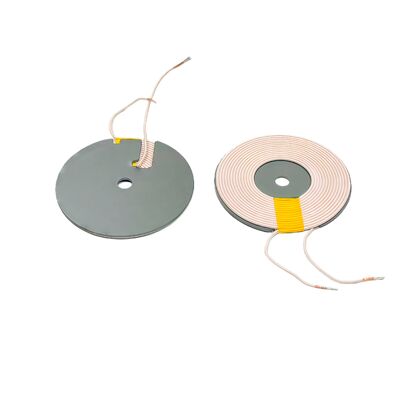

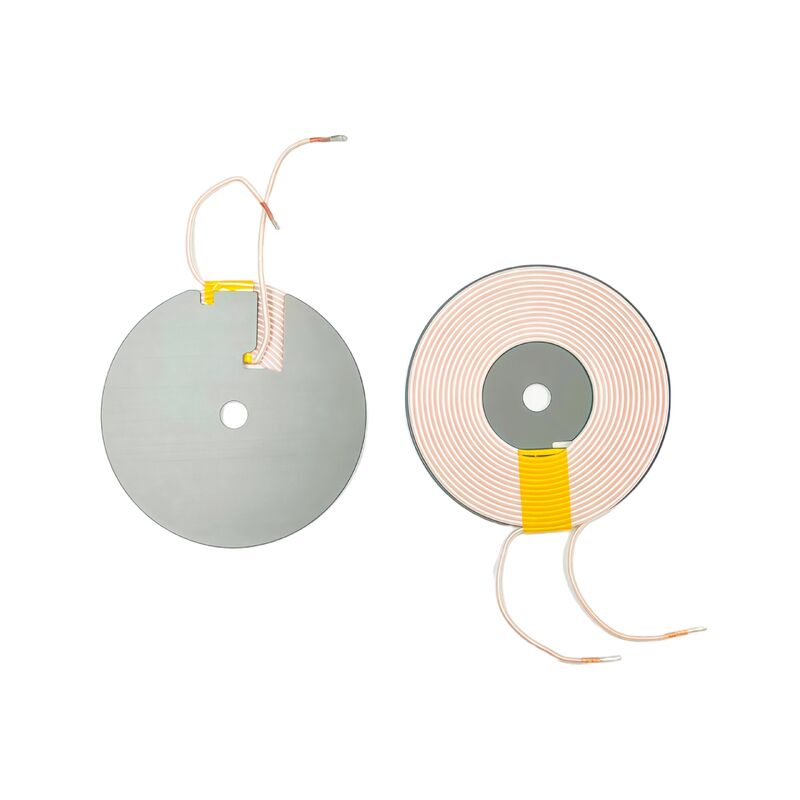

Coil Outer Diameter: 50.0 mm Construction: Precision-wound high-purity copper wire Shielding: Integrated high-permeability ferrite sheet |
Industry-proven optimal size for design balance Low DC resistance minimizes energy loss Concentrates magnetic flux, reduces EMI |
| Electrical & Charging |
Qi Compliance: v1.2 / v1.3 specifications Max Input Power: 15W fast wireless charging Frequency: 110 kHz - 205 kHz Efficiency: High system efficiency (>75% at 5W, >70% at 10W) |
Guaranteed compatibility with Qi-certified devices Enables rapid charging for compatible smartphones Stable operation within universal Qi band Maximizes power transfer, reduces thermal load |
| Reliability & Safety |
Thermal Management: Low temperature rise design FOD Compatibility: Works with standard detection circuits Durability: Robust construction with secure bonding |
Enhances long-term reliability and safety Prevents unintended heating of metallic objects Withstands vibration and mechanical stress |
| Customization |
Electrical: Custom inductance and DCR values Interface: Flexible lead wires or FPC connectors Mechanical: Custom thickness, winding pattern, ferrite shape |
Optimizes performance for specific transmitter chipsets Simplifies PCB layout and integration Enables seamless integration into space-constrained designs |
|
