| ブランド名: | ZXY |
| モデル番号: | EE2213 |
| MOQ: | 交渉可能 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| Feature Category | Key Specifications & Description |
|---|---|
| Core & Frequency |

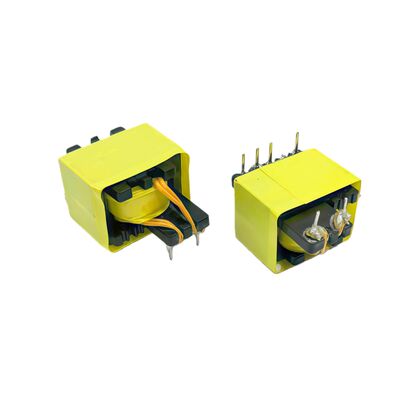

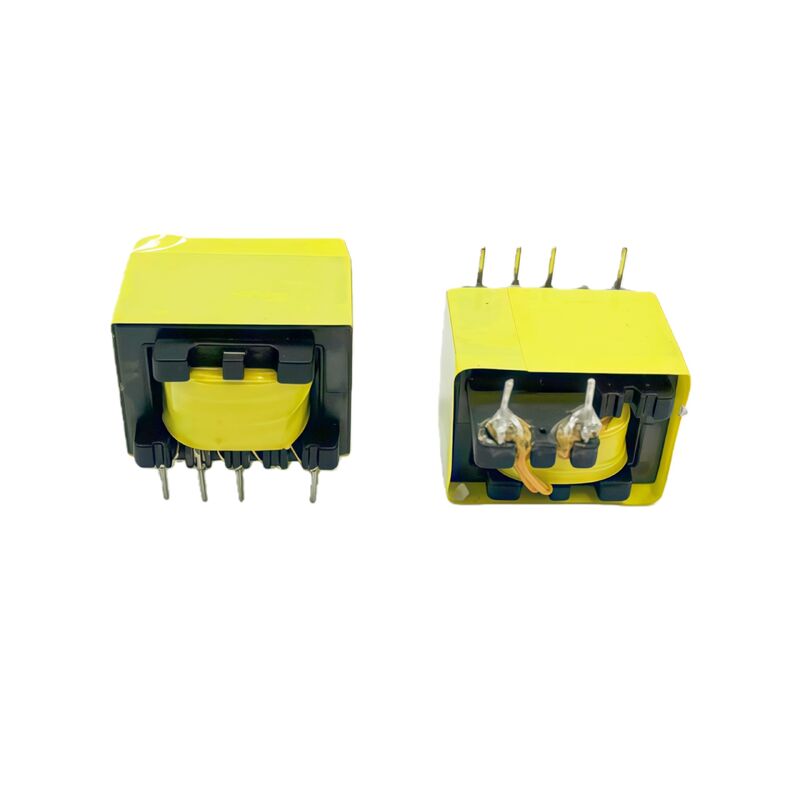

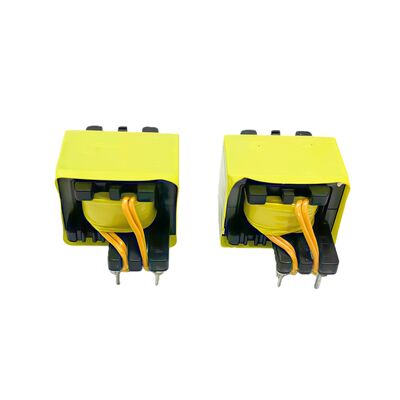

- Core Type: EE2213 (22x13mm) Ferrite Core - Frequency Range: 10kHz ~ 500kHz - Core Material: Low-loss, high-Bs ferrite |
| Electrical Performance |
- Low Core Loss: Optimized for reduced hysteresis & eddy current loss - Custom Windings: Turns ratio, inductance, and current rating customizable - Excellent EMI Characteristics: Controlled parasitic parameters for better EMC |
| Customization & Flexibility |
- Winding Design: Customizable for various topologies (Flyback, Forward, LLC) - Winding Options: Multi-filar, triple-insulated wire, multiple taps available - Isolation: Custom insulation voltage specifications |
| Reliability & Construction |
- Robust Mechanical Structure: Firm core assembly with high-strength bobbin - Thermal Performance: Excellent heat dissipation design - Industrial Grade: Suitable for demanding industrial environments |
| Typical Applications |
- Switch Mode Power Supplies (SMPS) - Inverters (PV, Energy Storage) - Industrial Power Electronics - Telecom/Datacom Power Systems - High-power LED Drivers, EV On-board Chargers |
|
