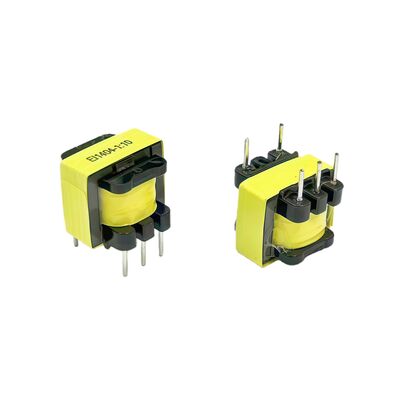

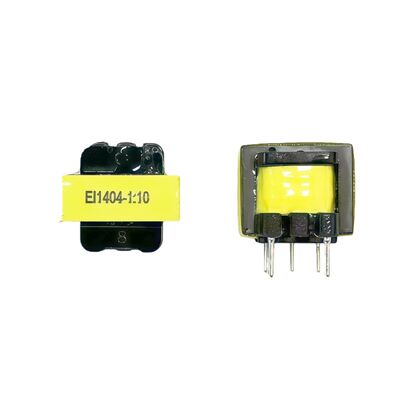

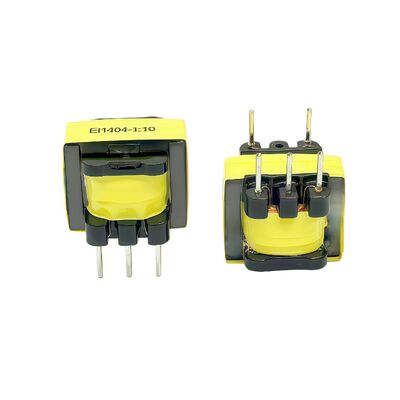

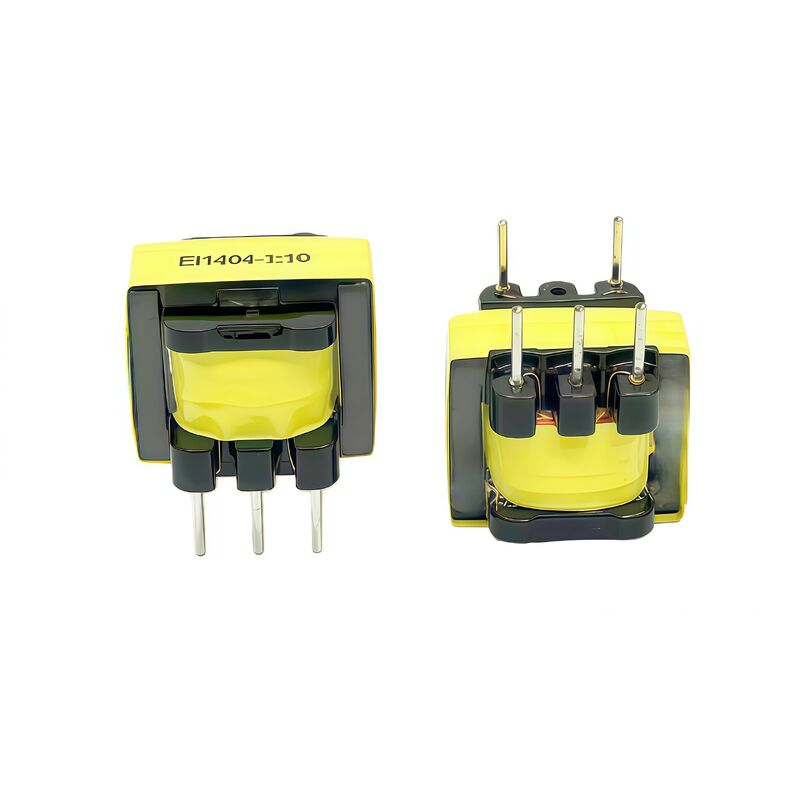

EI1404 Audio Transformer with 1:10 Step-up Ratio and 20dB Gain for Broadcast Console Level Matching

ブランド名:	ZXY
モデル番号:	EI1404
MOQ:	交渉可能
価格:	交渉可能
パッケージの詳細:	交渉可能

起源の場所:

シンセン広東省

RoHS、ISO9001、CE

供給の能力:

ハイライト:

1:10 Step-up Ratio Audio Transformer

20dB Gain Audio Transformer

EI1404 Broadcast Transformer

製品説明

Professional 1:10 Step up Audio Transformer EI1404 10dB Level Matching for Broadcast Console

Product Description

The Professional EI1404 is a 1:10 step-up audio transformer engineered for critical broadcast and studio applications. It delivers a precise 20dB of gain to perfectly match low-output microphones to console inputs, while its superior common-mode rejection and galvanic isolation eliminate ground loop hum and RF interference. This ensures pristine audio capture by maximizing signal-to-noise ratio and protecting sensitive downstream equipment, making it an indispensable tool for achieving the highest broadcast-quality sound.

Core Functions

Signal enhancement and level matching: Passively amplifies weak microphone signals with precise 1:10 boost ratio (20dB gain), elevating low-level signals to optimal operating levels for mixing console circuits.
Balance transmission and noise suppression: Functions as an ideal balanced transmission bridge, using electromagnetic induction to suppress common mode noise (power frequency hum and RF interference) in long-distance cables.
Electrical isolation and equipment protection: Achieves complete electrical isolation through magnetic coupling, cutting off ground loops and protecting broadcasting equipment from voltage surges.

Performance Characteristics

Feature	Description
Precise Gain & Level Matching	Provides an exact 1:10 step-up ratio (20dB voltage gain) to optimally match low-level microphone signals to broadcast console preamps
Superior Common-Mode Rejection (CMRR)	Effectively rejects noise, hum, and RF interference through excellent common-mode rejection
Wide & Flat Frequency Response	Delivers wide, flat frequency response across the audible spectrum with minimal phase shift
Galvanic Isolation & Protection	Provides complete electrical isolation between input and output circuits, breaking ground loops
Optimal Impedance Transformation	Efficiently transforms low microphone impedance to higher console input impedance
