| ブランド名: | ZXY |
| モデル番号: | ZXY3529 |
| MOQ: | 交渉可能 |
| 価格: | 交渉可能 |
| パッケージの詳細: | 交渉可能 |
| 支払条件: | PayPal |
When multiple audio devices are connected together, potential differences between devices can create ground loops, resulting in 50/60Hz low-frequency humming. The ZXY3529, connected in series within the signal chain, provides electrical isolation to completely cut ground loop paths and eliminate noise.
The transformer enables balanced-unbalanced conversion when placed between unbalanced outputs and balanced inputs, providing isolation while transmitting audio signals and suppressing noise from long cable runs.
The transformer blocks DC components that could damage input circuits or cause low-frequency distortion, allowing only pure audio AC signals to pass through for reliable equipment protection.
While not an ideal impedance match, the ZXY3529 can serve as a simple passive DI box for instrument signals, achieving signal conversion and isolation while eliminating stage ground noise.
When connected after phono outputs, the transformer provides electrical isolation from digital devices or amplifiers, blocking RF interference and power ground noise for cleaner analog playback.
| Category | Specification / Feature |
|---|---|

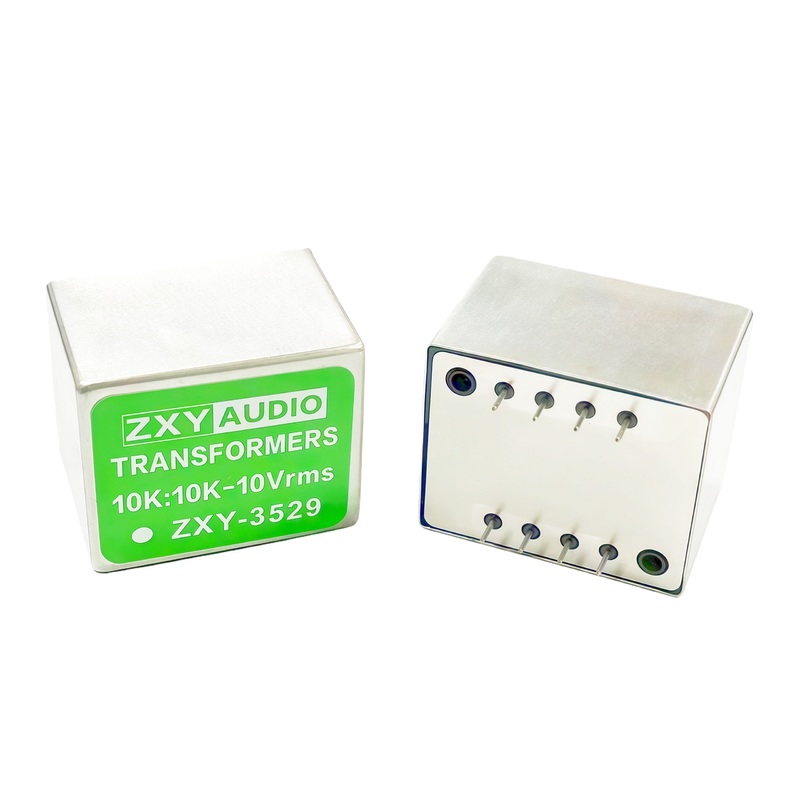

| Model | ZXY3529 |
| Type | Audio Isolation / Signal Transformer |
| Impedance Ratio | 10,000 ohms : 10,000 ohms (10K:10K) |
| Core Material | Permalloy (High magnetic permeability, low core loss) |
| Rated Level | 10 Vrms |
| Primary Function | Galvanic Isolation to break ground loops and eliminate hum & buzz |
| Key Benefit 1 | Noise & Interference Reduction: Blocks DC bias and common-mode RFI/EMI noise |
| Key Benefit 2 | Equipment Protection: Isolates connected gear, preventing potential damage from ground faults |
| Key Benefit 3 | Signal Integrity: Permalloy core ensures minimal distortion and excellent low-frequency response |
| Typical Applications | Connecting audio interfaces, mixers, preamps, DI boxes, DACs, and other line-level consumer/pro-audio equipment |
|
