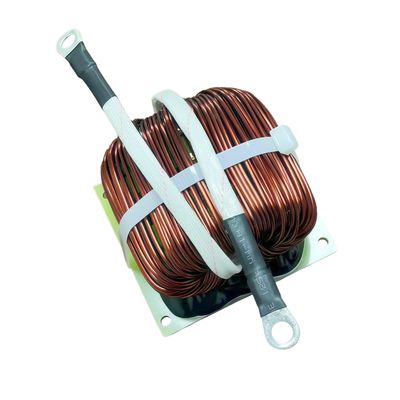

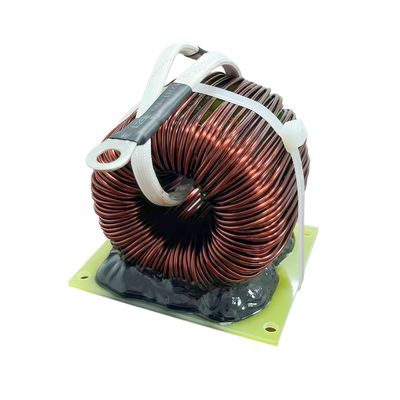

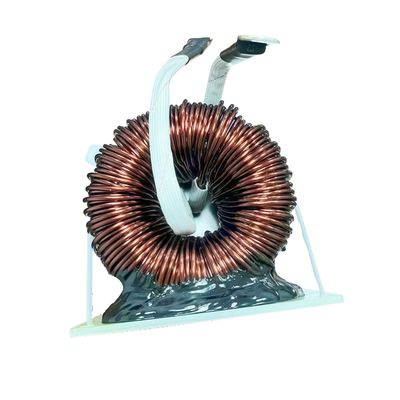

This **1mH 60A Customized Large Toroidal Inductor Coil** is designed for high-current applications, featuring a **double magnetic ring structure** for enhanced efficiency and thermal stability. With a **single-winding (1-turn) design**, it minimizes DC resistance (DCR) while supporting **continuous 60A current** and **1mH inductance**, making it ideal for **power converters, inverters, EV charging systems, and industrial motor drives**. The **toroidal shape reduces EMI**, and its **high-temperature-resistant construction** ensures reliable performance in demanding environments. Customizable core materials (e.g., ferrite or powdered iron) allow optimization for low-loss or high-saturation applications.
1. * * High current and high load * * - Supports * * 60A continuous current * *, suitable for high-power conversion, inverters, and industrial drive systems.
2. * * Double magnetic ring structure * * - optimizes magnetic circuit distribution, reduces eddy current losses, improves efficiency and temperature rise performance.
3. * * 1mH high inductance stable output * * - maintains inductance consistency over a wide frequency range and suppresses current ripple.
4. * * Single winding low resistance design * * - reduces direct current resistance (DCR), lowers heat generation, and improves energy efficiency.
5. Ring shaped magnetic core with low EMI - The enclosed magnetic circuit structure effectively suppresses electromagnetic interference and is suitable for high-density power supply systems.
Suitable for harsh scenarios such as new energy, electric vehicles, industrial power supplies, etc., supporting customized magnetic core materials (such as iron silicon aluminum, nanocrystals, etc.).
| Parameter | Specification | Remarks |
| Inductance (L) | 1 mH (±10% or custom tolerance) | Measured at 1 kHz, 0.1 V |
| Rated Current (I<sub>RMS</sub>) | 60 A (continuous) | Temperature-dependent |
| Saturation Current (I<sub>sat</sub>) | ≥80 A (20% inductance drop) | Core material dependent |
| DC Resistance (DCR) | <0.5 mΩ (typical) | Low-loss design |
| Operating Frequency | Up to 100 kHz (depends on core material) | Ferrite: higher freq. / Powder core: higher current |
| Core Material | Double magnetic ring (Fe-Si-Al / Nanocrystalline / High-flux powder) | Customizable |
| Winding Type | Single-layer, 1-turn (heavy-duty foil or Litz wire) | Low skin effect |
| Temperature Range | -40°C to +150°C | Thermal Class H possible |
| Core Losses | Low hysteresis & eddy current losses | Optimized for high efficiency |
| EMI Performance | Excellent (toroidal structure minimizes leakage flux) | Reduced noise in circuits |
|
|
